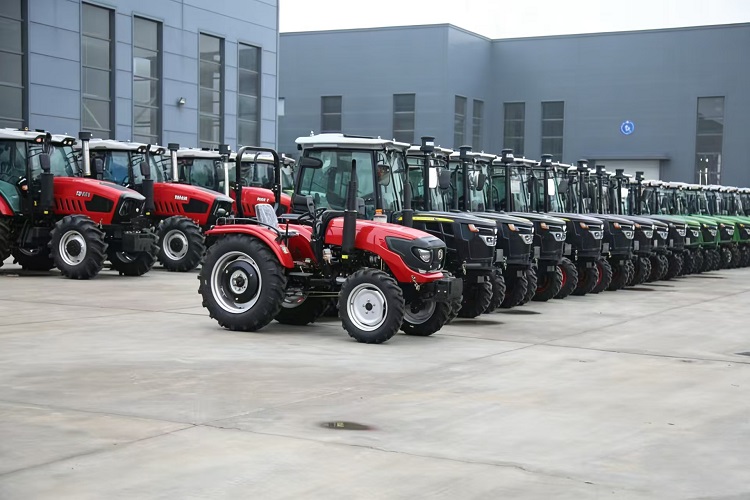

CPM1204
Product Description:

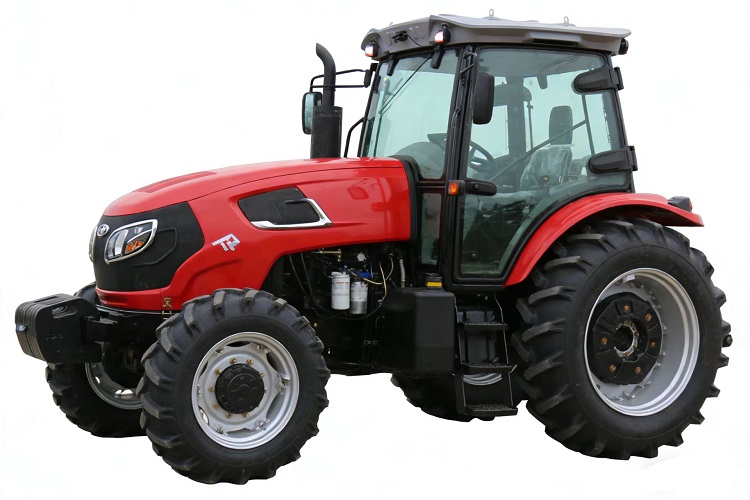

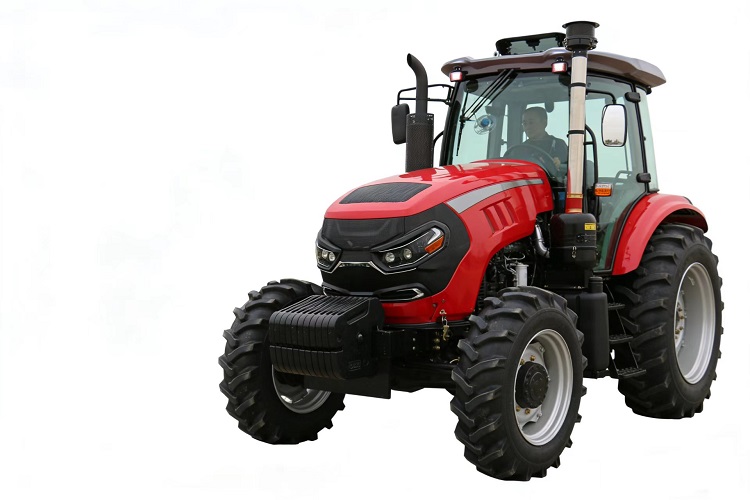

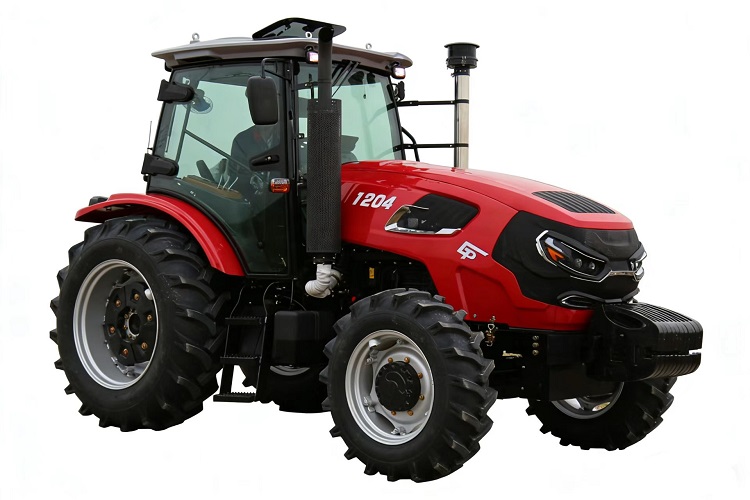

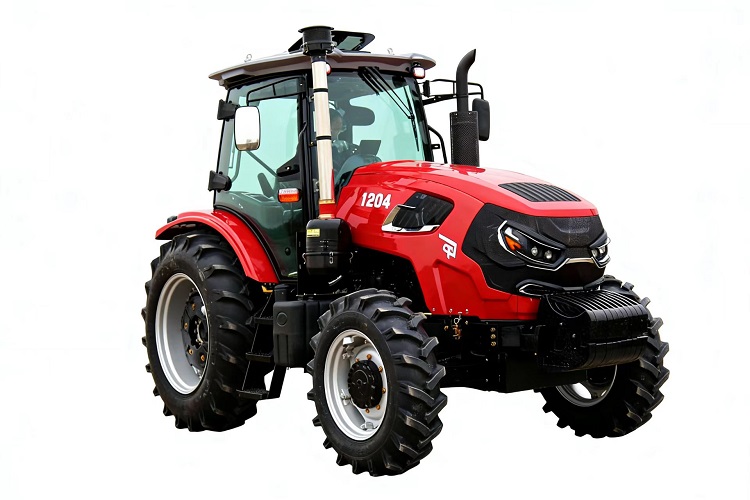

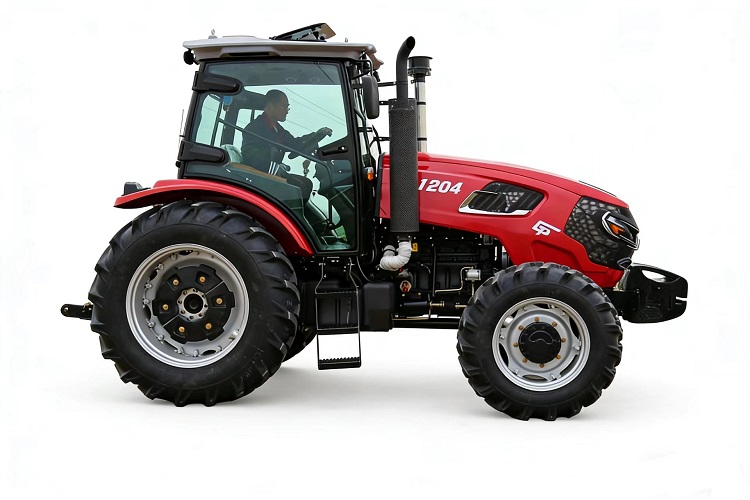

CPM1204 is a versatile 120HP wheel tractor suitable for various agricultural operations including ploughing, harrowing, seeding, fertilizing, transportation and matching different tractor attachments on farms, orchards and pastures.

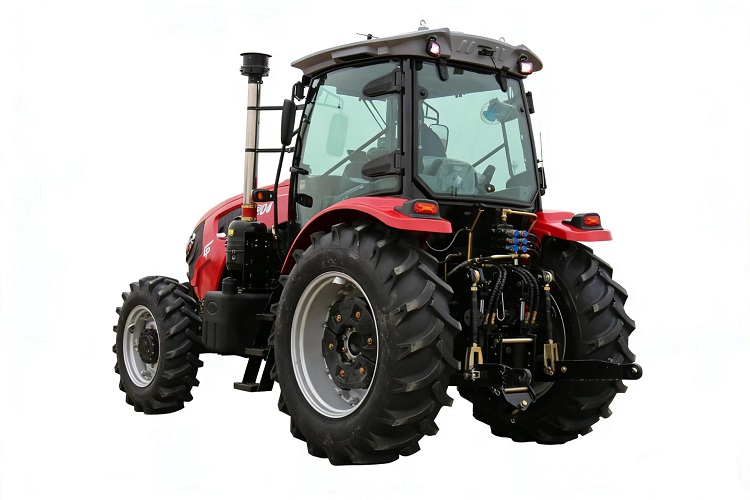

It is equipped with reliable YTO six-cylinder diesel engine, delivering stable power output and excellent fuel economy. Adopts dual-stage clutch, hydraulic steering and 16+8 gear transmission, enabling flexible speed adjustment to adapt to diverse working conditions. Standard 3-point hitch and semi-independent PTO (540/720r/min) allow connection with a wide range of farm implements to realize multi-functional farming work.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
| CPM1204 | ||||
Dimensions of Tractor(mm) | Length | 4830 | |||
Width | 2050 | ||||
Height (to the exhaust vent) | 2810 | ||||
Tread | Front Wheel | 1610 | |||
Rear Wheel | 1620-2020 (usual 1620) | ||||
Axle Base | 2366 | ||||
Min.Ground Clearance | 470 | ||||
Structure weight (kg) | 4600Kg | ||||
Engine | Model | YTO 6B5-23 | |||
Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | ||||
Rated Power(kw) | 88.2 | ||||
Rated speed (r/min) | 2300 | ||||
Fuel | Diesel | ||||
Tires | Front Wheel | 12.4-24 | |||
Rear Wheel | 16.9-34 | ||||
Clutch | Dual-stage clutch | ||||
Steering | Hydraulic steering | ||||
Transmission Type | 16+8 shift | ||||
Suspension Type | 3-point links | ||||
PTO | Type and Rev | Semi-independent Type 540/720r/m | |||
Spline Size | I35 Rectangle Spline with 6 teeth | ||||
