Front End
Product Description:

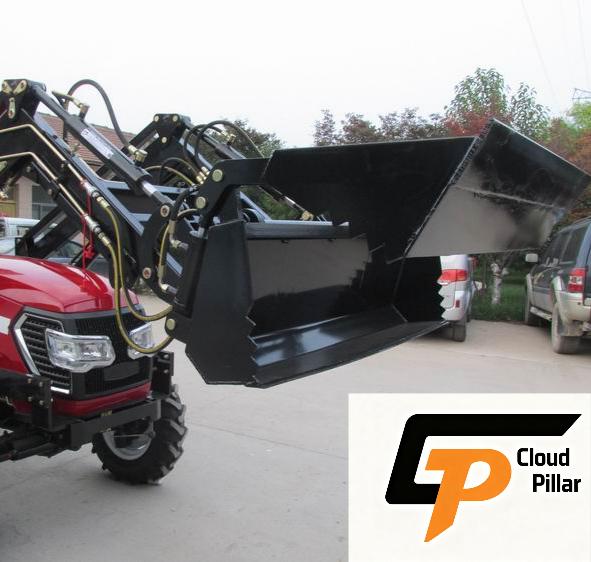

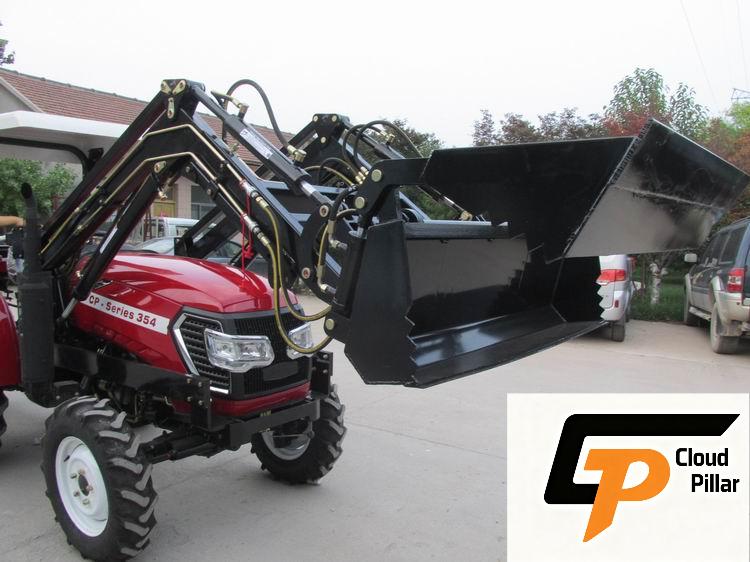

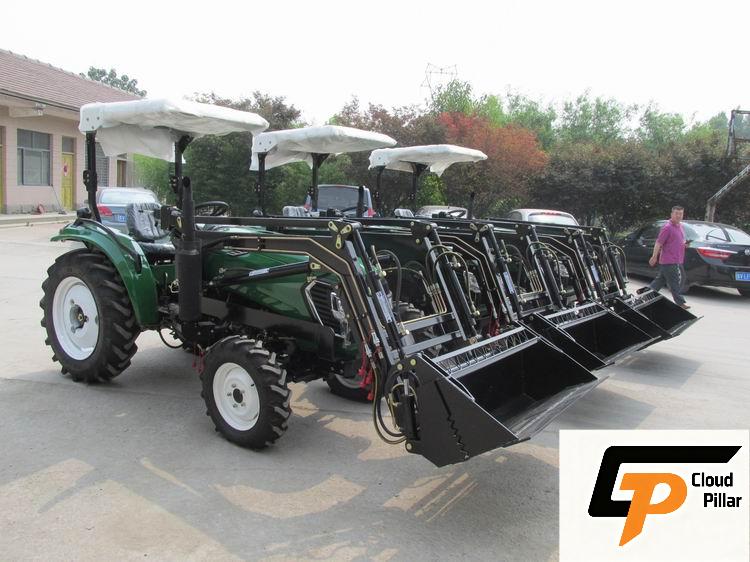

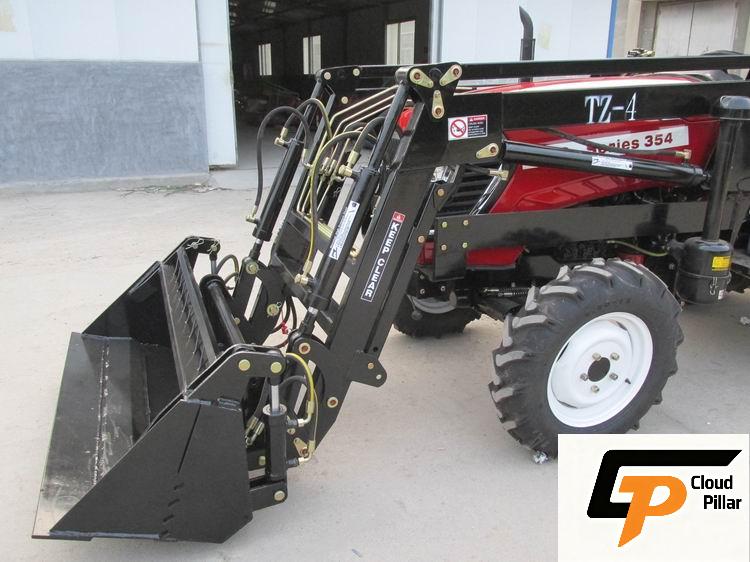

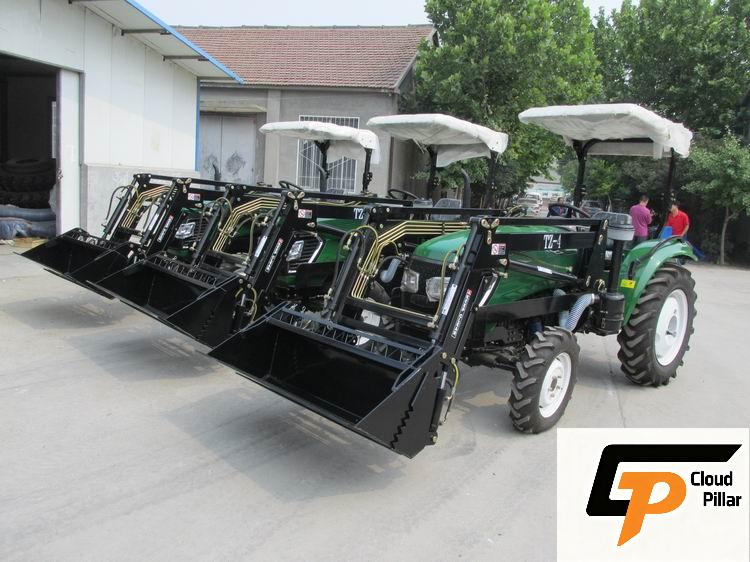

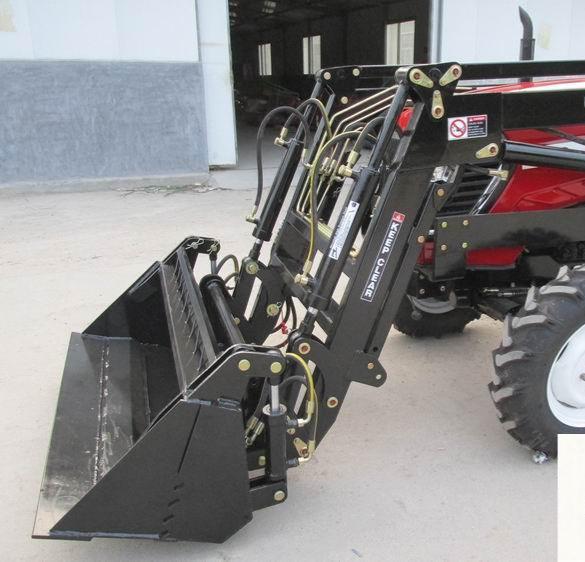

The TZ series front end loader has 7 models ranging from TZ-3 to TZ-12, compatible with tractors of 20–125 hp to satisfy different operating demands.
For structural performance, rated lifting capacity expands from 300 kg to 1200 kg across the lineup. Maximum dump height spans 1800–3800 mm, maximum dump distance ranges 900–1100 mm, digging depth covers 100–200 mm, and bucket width is 1.4 m to 2.2 m, with customized overall dimensions for each specification.
These loaders can be mounted on matching tractors to complete material loading, soil excavation and bulk material dumping tasks, suitable for farmland renovation, farm cargo handling and small yard construction work.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Front end loade Model | TZ-3 | TZ-4 | TZ-5 | TZ-6 | TZ-8 | TZ-10 | TZ-12 |
Matching tractor(hp) | 20-30 | 30-55 | 40-55 | 50-60 | 60-80 | 80-110 | 100-125 |
Overall dimensions(m) | 4.10*1.60*1.58 | 4.90*1.74*2.50 | 5.10*1.74*2.70 | 5.35×1.80×3.00 | |||
Rated lift capacity(kg) | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
Max.dump height(mm) | 1800 | 2000 | 2100 | 2200 | 2350 | 2550 | 3800 |
Max.dump distance(mm) | 900 | 900 | 950 | 950 | 960 | 1000 | 1100 |
Digging depth(mm) | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
Bucket width(m) | 1.4 | 1.5 | 1.6 | 1.6 | 1.7 | 1.8-2.0 | 2.0-2.2 |
Bucket capacity(m3) | 0.18 | 0.23 | 0.35 | 0.4 | 0.48 | 0.6 | 0.65 |
Bucket rollback angle(°) | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
Max. unload angle (°) | 47 | 47 | 46 | 46 | 42-46 | 42-46 | 46 |
Max. scraping depth（mm） | 160 | ||||||
Lifting time to pivo pin(s) | 7 | 7 | 7 | 8 | 8 | 8 | 10 |
Descending time(s) | 3.5 | 3.5 | 3.5 | 3.5 | 4 | 4 | 10 |
Weight(kg) | 470-650 | 500-680 | 530-720 | 660-800 | 680-830 | 800-980 | 960-1150 |
Loading quantity(sets/40") | 20 | 20 | 18 | 18 | 16 | 12 | 12 |
