Product Description:

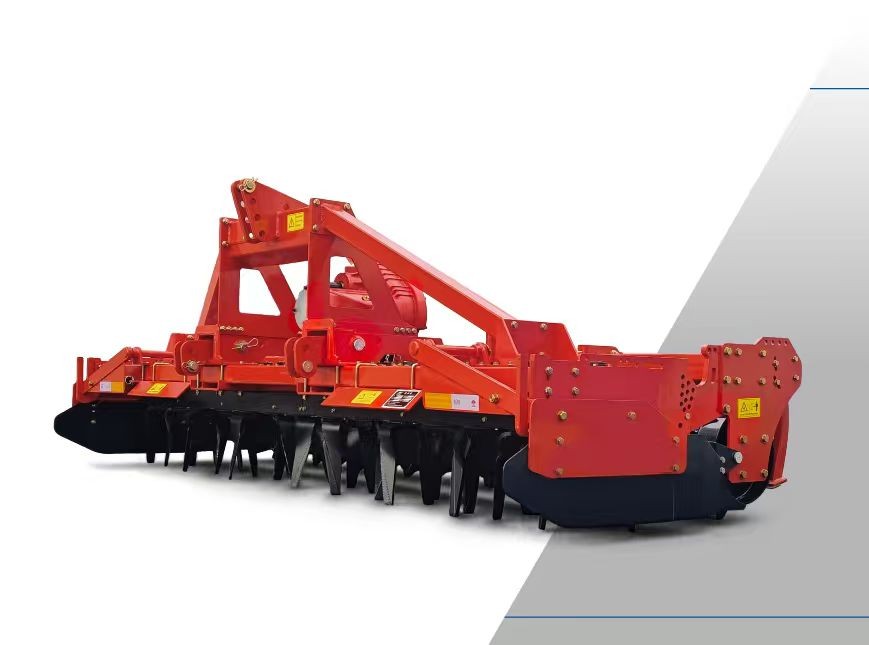

1BQ series power harrow is a professional tractor tillage implement. It is widely used for soil crushing, leveling and seedbed preparation before sowing in farmland, vegetable fields and orchards.
Equipped with robust rotors and hardened blades, it delivers uniform tillage effect. The machine breaks large soil clods efficiently to form loose, flat soil layer, which helps improve soil aeration and seed germination. Multiple models with different working widths are available to match various horsepower tractors, meeting different farm operation requirements.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Model | 1BQ-2.0 | 1BQ-2.5 | 1BQ-2.6 | 1BQ-3.0 | 1BQ-3.5 | 1BQ-4.0 | 1BQ-4.5 | 1BQ-4.1? | 1BQ-5.0 | 1BQ-6.0 |
Working width(m) | 2 | 2.5 | 2.6 | 3 | 3.5 | 4 | 4.5 | 4.1 | 5 | 6 |
No. of drums | 8 | 10 | 10 | 12 | 14 | 16 | 18 | 16 | 20 | 24 |
No. of blades | 16 | 20 | 20 | 24 | 28 | 32 | 36 | 32 | 40 | 48 |
Weight(without PTO shaft)kg | 1210 | 1400 | 1400 | 1620 | 1880 | 2080 | 2250 | 2665 | 3410 | 3830 |
Matched power(kw/hp) | 66-88(90-120) | 88-103(120-140) | 88-103(120-140) | 103-132(140-180) | 117-147(160-200) | 132-176(180-240) | 162-191(220-260) | 162-191(220-260) | 191-220（260-300）） | 220-257（300-350） |
Dimensions(L*W*H)mm | 1450*2120*1240 | 1450*2620*1240 | 1450*2720*1240 | 1450*3120*1240 | 1450*3620*1240 | 1450*4120*1240 | 1450*4620*1240 | 1700*4220*1400 | 1650*5200*1500 | 1650*6200*1500 |
Working depth(mm) | 100-180 | |||||||||
