C502
Product Description:

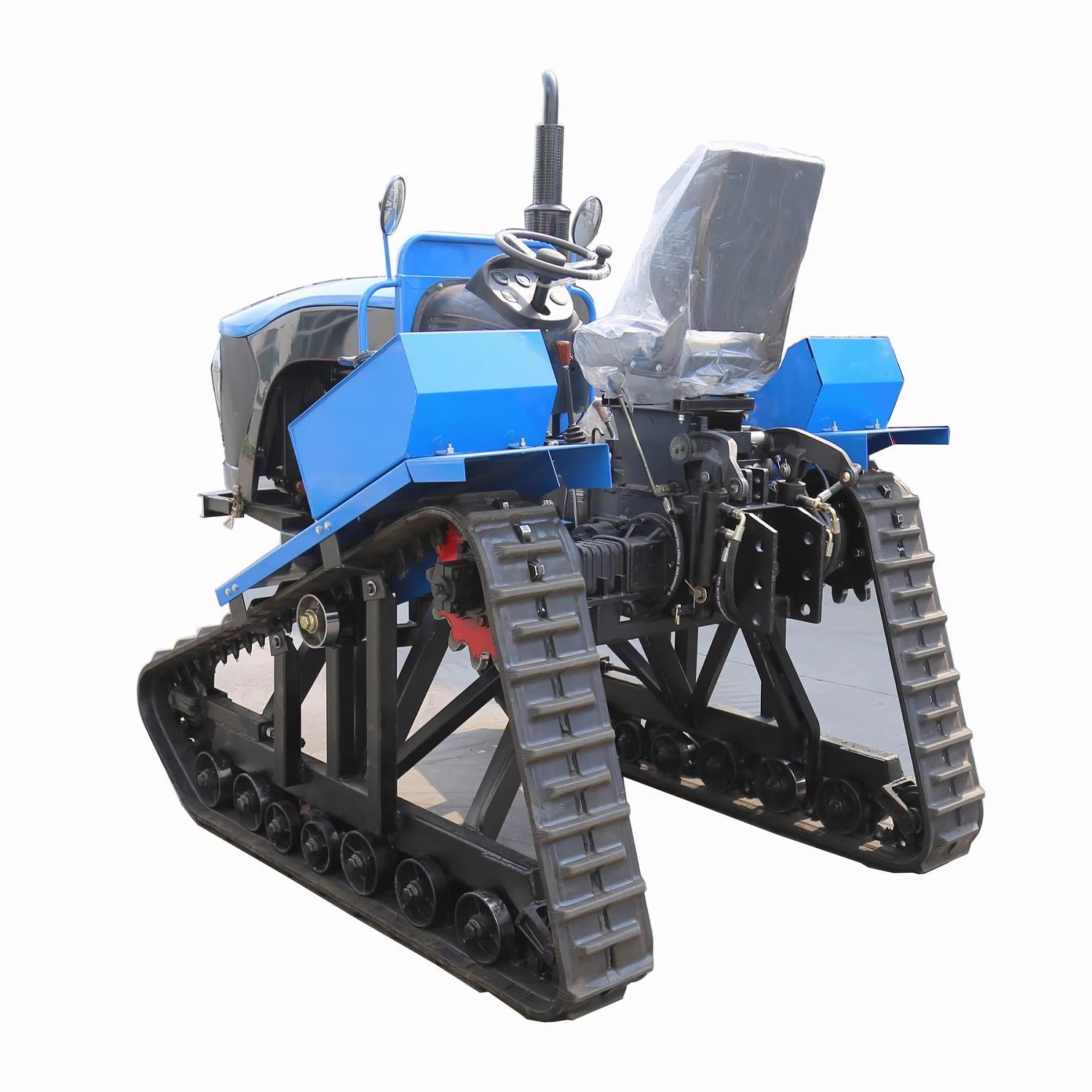

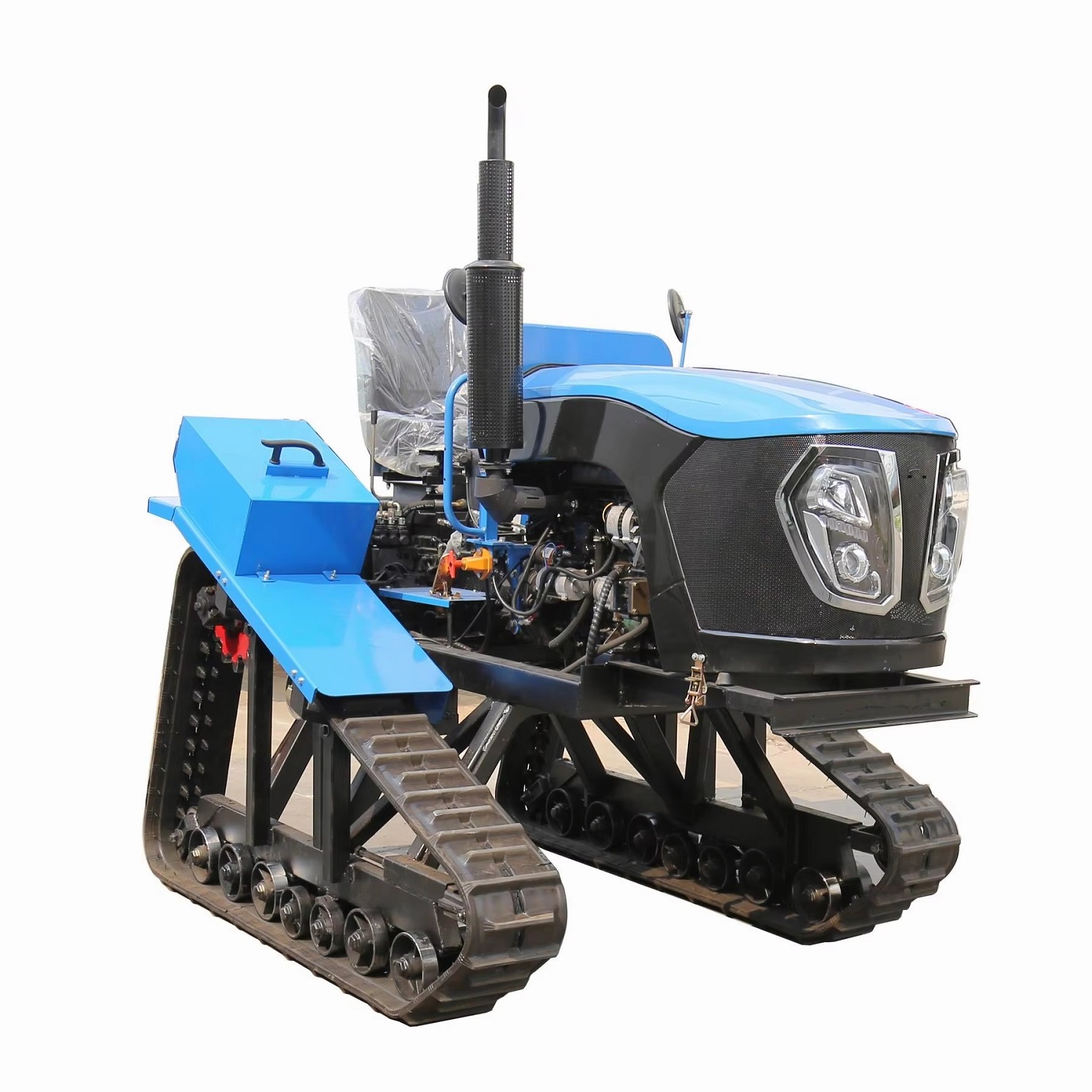

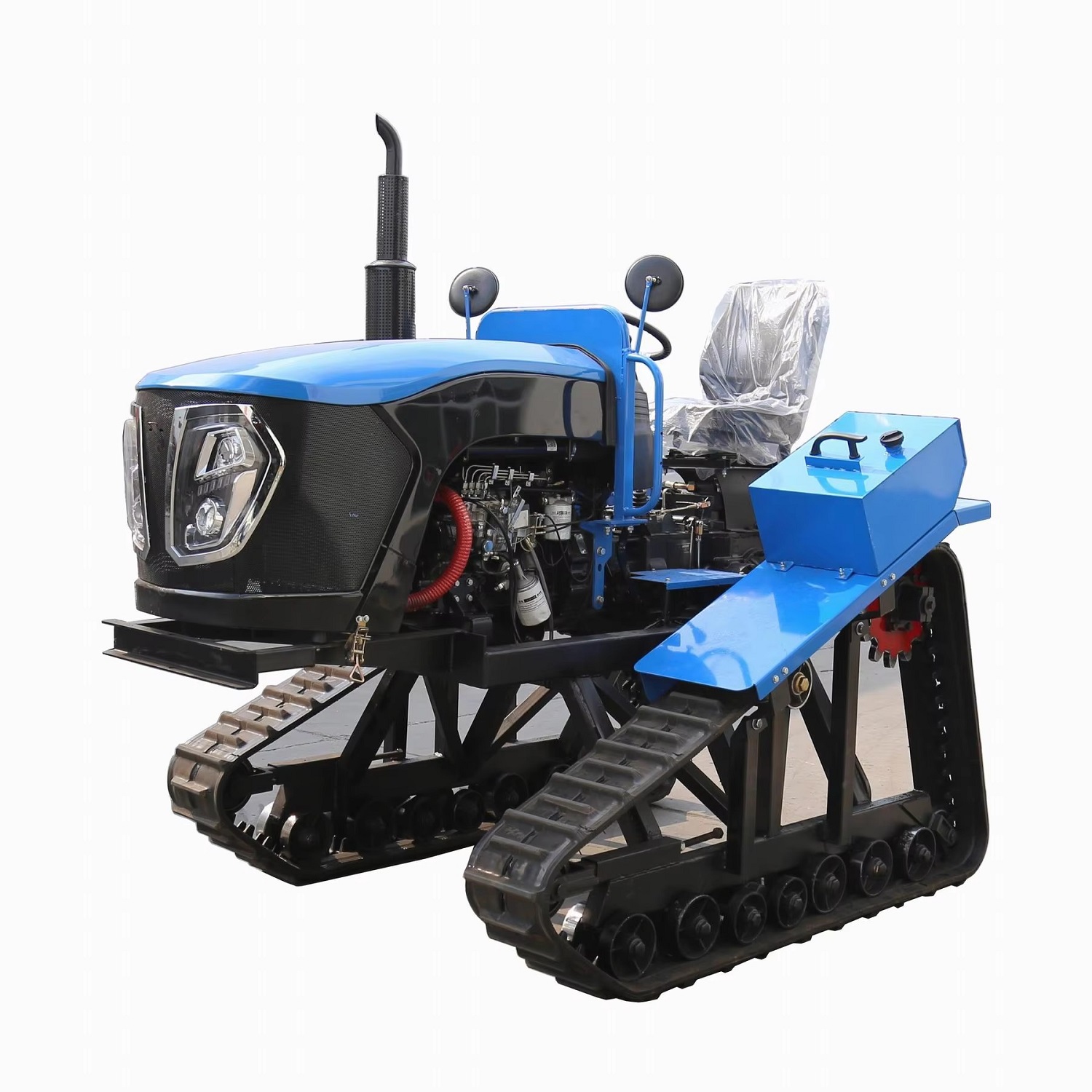

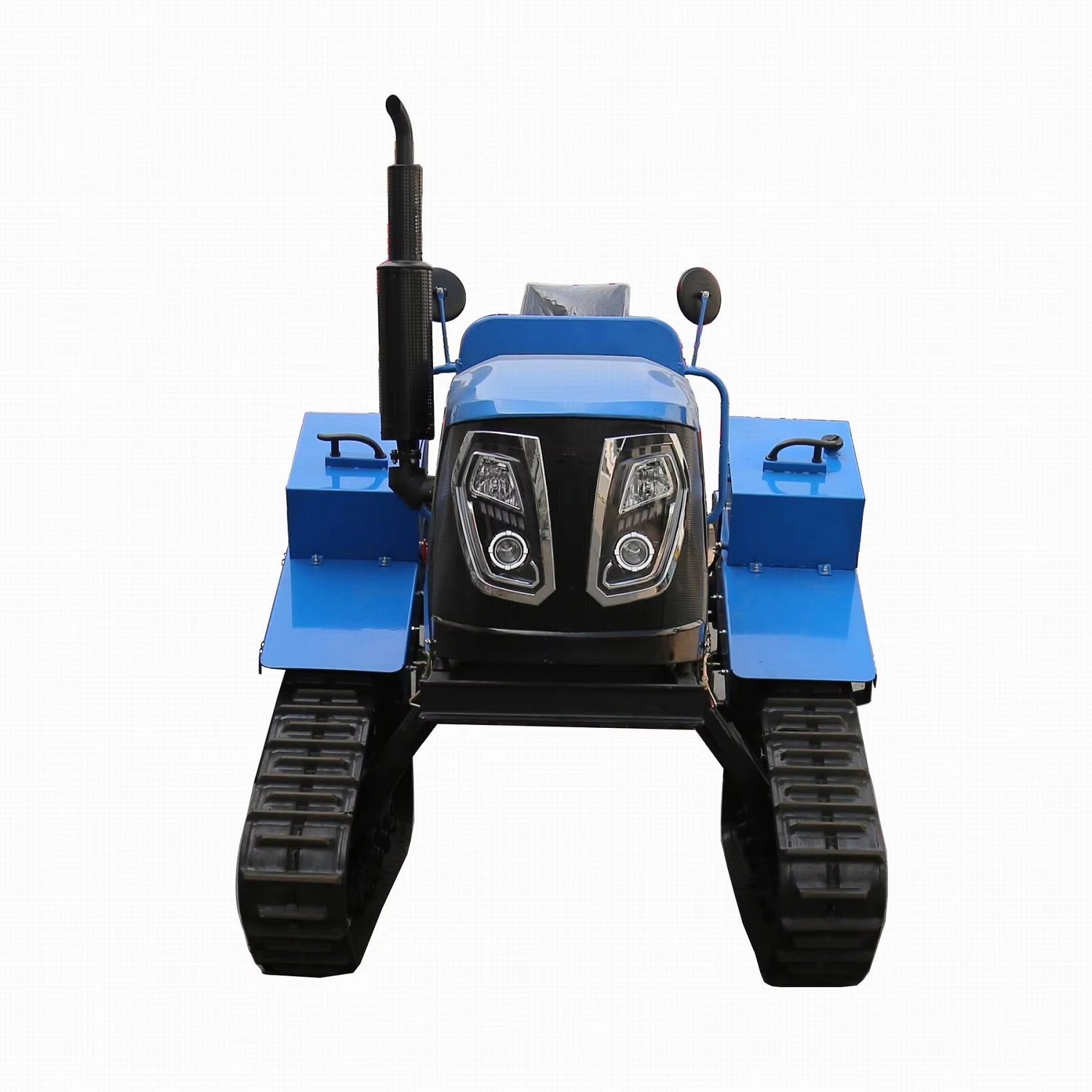

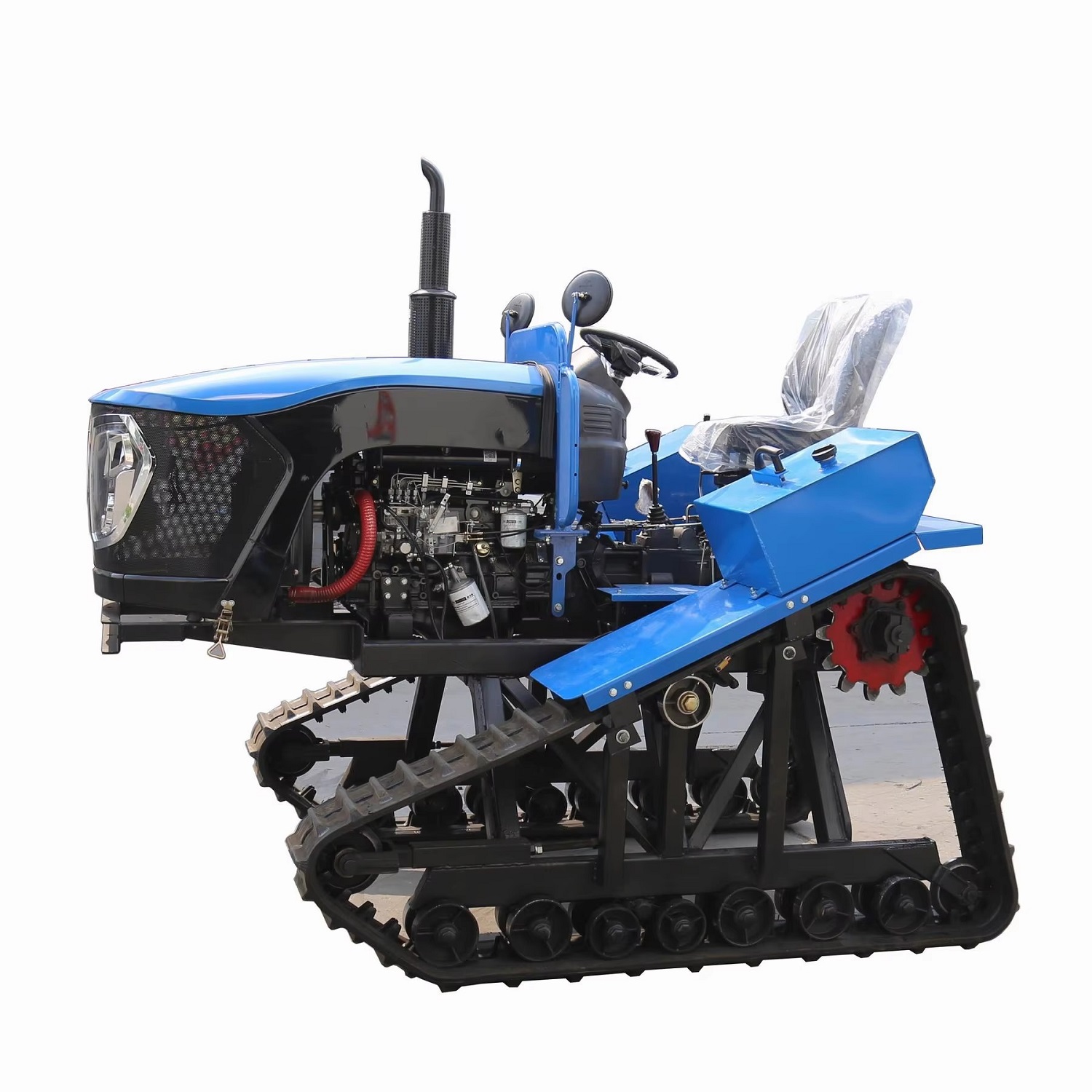

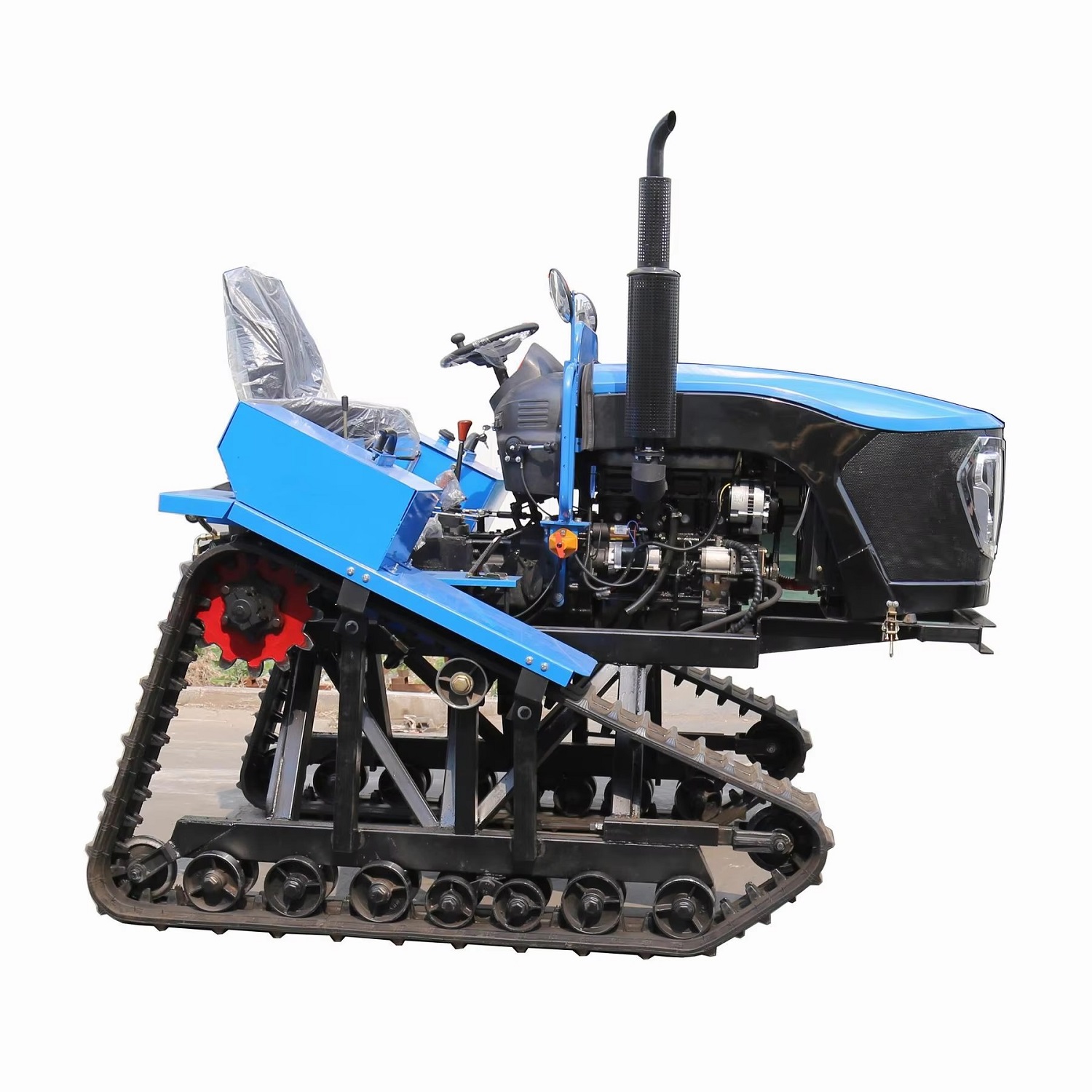

The C502 tractor is a compact agricultural machine with overall dimensions of 2700mm × 1550mm × 1500mm, a 1150mm wheel tread and 350mm minimum ground clearance, weighing 1500kg in basic structure. It is equipped with a Changchai vertical 4-cylinder water-cooled 4-stroke diesel engine, delivering a rated power of 50hp at 2200r/min.
Fitted with 350mm wide tracks, the tractor adopts a single-stage clutch, hydraulic steering and 8+2 gear shift transmission, matched with standard 3-point linkage suspension. Its semi-independent PTO supports rotating speeds of 540/720r/min, with a 6-tooth I35 rectangular spline for stable connection of farming implements, ideal for diverse farm operations.
Inquiry Now
- Product Description
- Inquiry Now
- Related Products
- Customer Reviews
Product Description
Model | C502 | ||||
Dimensions of Tractor(mm) | Length (to front ballast) | 2700 | |||
Width | 1550 | ||||
Height (to the exhaust vent) | 1500 | ||||
Tread | mm | 1150 | |||
Min.Ground Clearance | 350 | ||||
Structure weight (kg) | 1500 | ||||
Engine | Model | Changchai | |||
Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | ||||
Rated Power(kw) | 50hp | ||||
Rated speed (r/min) | 2200 | ||||
Fuel | Diesel | ||||
Track | Width | 350mm | |||
Clutch | Single-stage clutch | ||||
Steering | Hydraulic steering | ||||
Transmission Type | 8+2 shift | ||||
Suspension Type | 3-point links | ||||
PTO | Type and Rev | Semi-independent Type 720r/m or 540/720r/m | |||
Spline Size | I35 Rectangle Spline with 6 teeth | ||||
